Coping & Wall Cap

Two-part parapet caps — a continuous cleat plus a cover — finishing the top of a wall while locking the roof membrane down underneath.

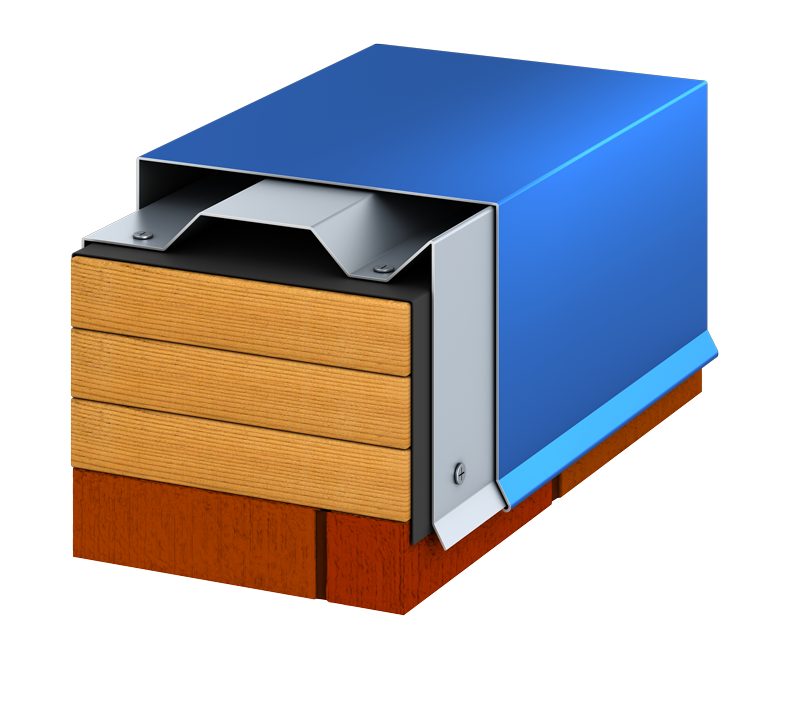

Snap Coping Max

A 16 ga galvanized segmented cleat spaced 40" on center with a decorative snap-on cover, plus concealed splice plates and fasteners so nothing penetrates the top surface. Corporate and custom colors available.

Face up to 12" Wall width up to 32" Back leg up to 6" ES-1 FM 4435 GT-1

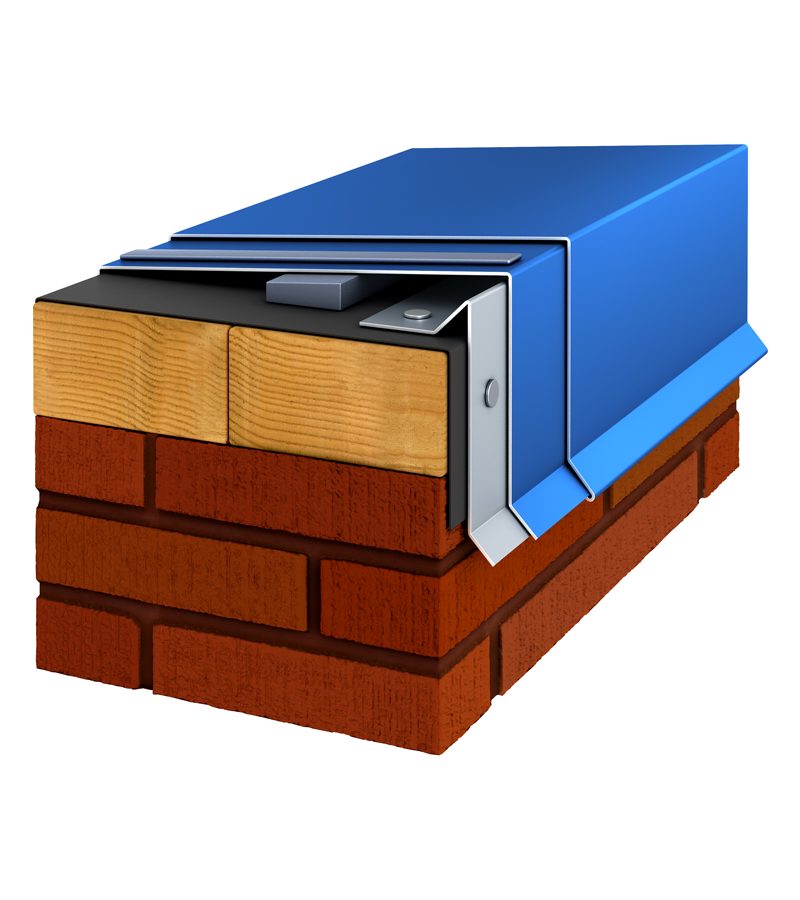

Econo Coping

A value-engineered parapet cap with a formed continuous cleat on the front face, an exposed fastener on the back face, and a drip profile that throws water clear of the wall.

Face up to 6" Wall width up to 20" Back leg up to 5.25" ES-1 FM 4435

Econo Coping LT

The lighter-gauge Econo Coping, formed in 24 ga with the same continuous front cleat and drip profile, rated for wider walls.

Face up to 6" Wall width up to 24" Back leg up to 5.5" ES-1 FM 4435

Fascia

Continuous cleat with a snap-on cover that finishes the roof edge and locks the membrane down.

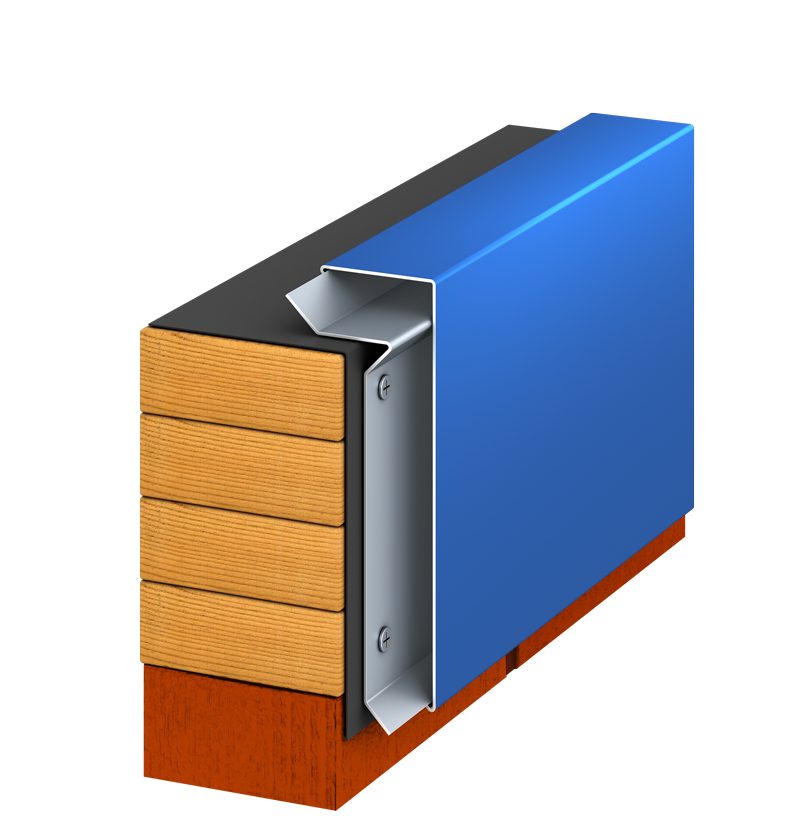

Fascia LT

A 22 ga continuous cleat with a snap-on cover and fully concealed fasteners — the standard choice for finishing a low-slope perimeter.

Face 3", 4½", 6", 8" ES-1 FM 4435 90 MPH / 20-yr

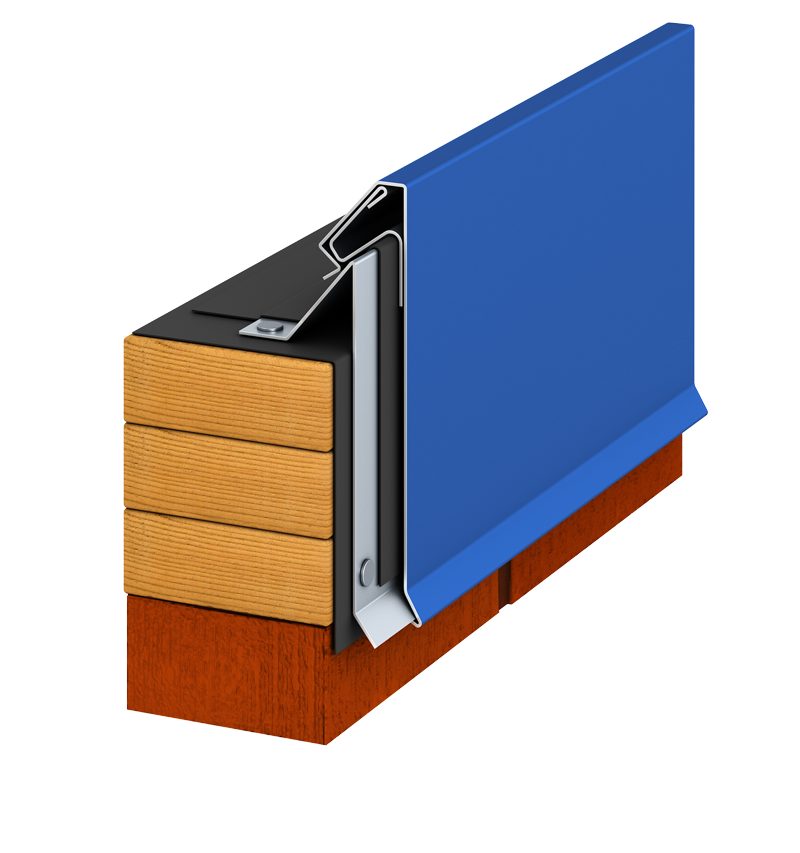

Secure Lok Fascia

A heavier fascia assembly whose cover locks into the cleat along its full length, built for buildings where perimeter uplift governs the edge detail.

Face sized to the job ES-1 FM 4435 90 MPH / 20-yr

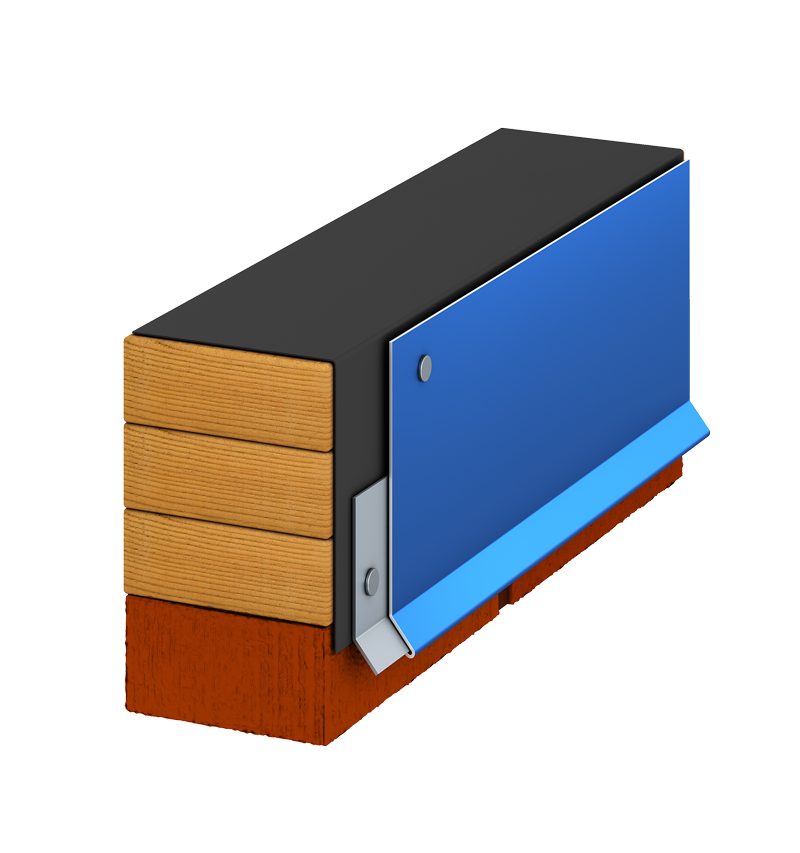

Fascia Extender

An extender panel that increases the visible face of an existing fascia system, available flat or with an offset where the extension has to stand off the wall plane.

Face height to the job Used with ES-1 fascia

Gravel Stop

Continuous cleat with a strip-in flange for built-up and single-ply roofs.

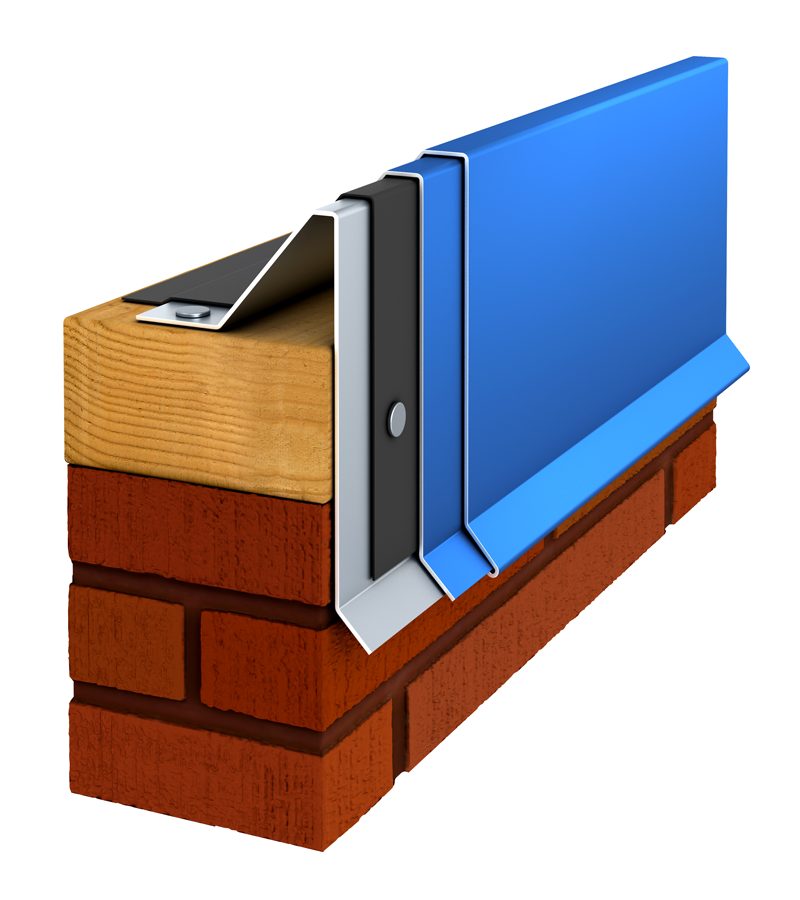

Gravel Stop

A two-part gravel stop with a pre-punched continuous cleat and a strip-in flange the roofer laps into the membrane, giving a watertight, fully adhered edge on built-up and single-ply roofs.

Face up to 10" Strip-in flange 4"–6" ES-1 FM 4435 90 MPH / 20-yr

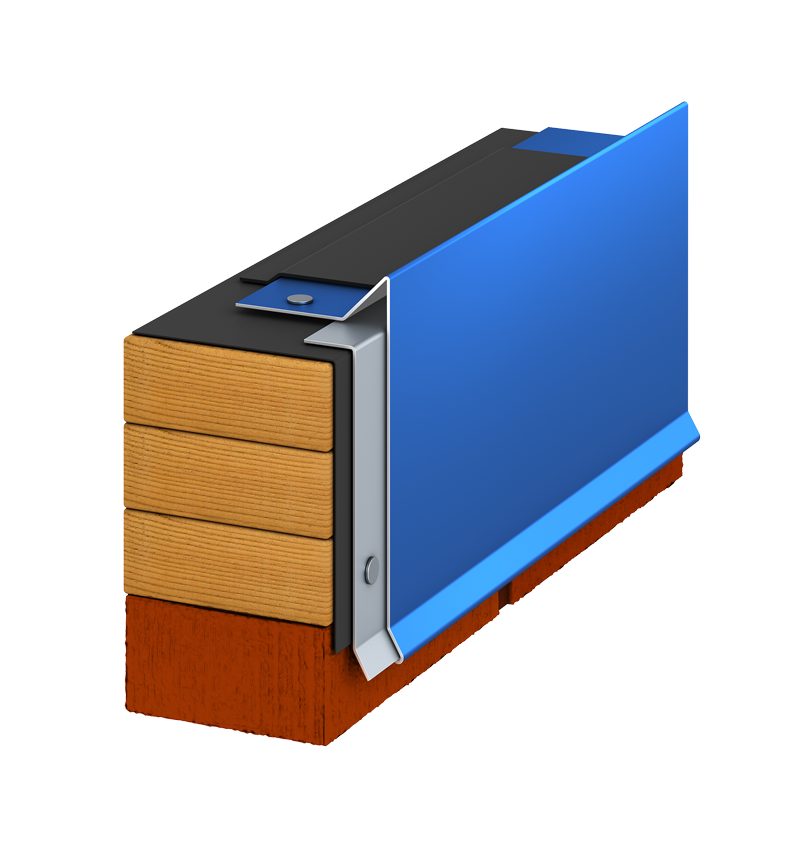

Econo Gravel Stop

The light-gauge gravel stop — the same pre-punched continuous cleat and strip-in cover in 24 gauge, for perimeters where the face stays under 7".

Face up to 7" ES-1 FM 4435 90 MPH / 20-yr

Gutter

Hung gutter systems formed in the same finishes as the roof, so the perimeter matches.

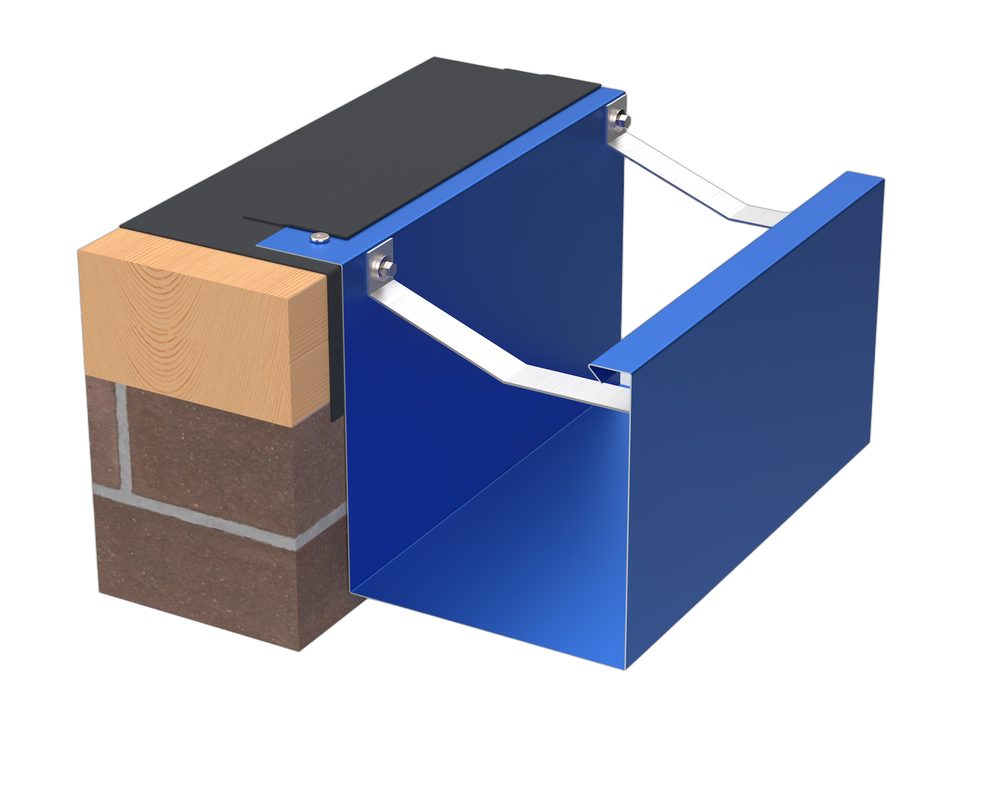

Gutter LT

Light-duty hung gutter for residential and light commercial roofs, with a formed front bead and concealed hanger system.

Face 4"–6" Bottom 4"–6" Back 5"–7" GT-1

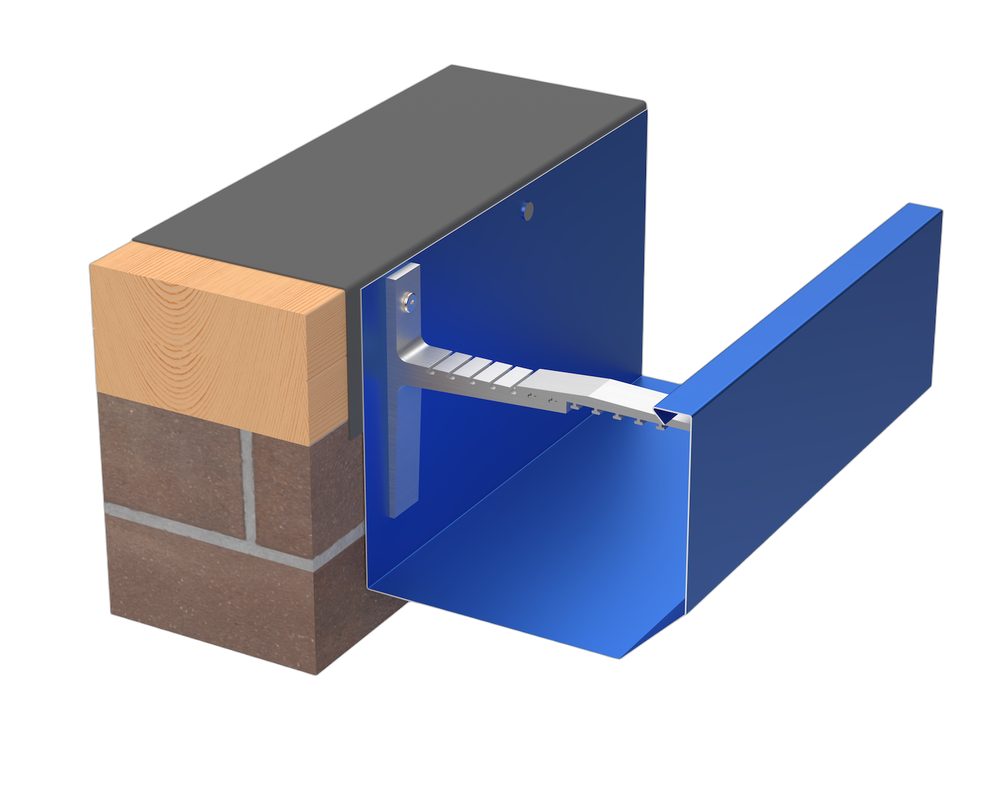

Gutter HD

A hung gutter formed in heavier stock with a reinforced front bead, sized for commercial roofs and long drainage runs.

Face 5¼"–7¾" Bottom 5¼"–7¾" Back 6¼"–8¾" GT-1

Drip Edge

Light-duty edge metal with a hemmed drip that kicks water clear of the fascia — the everyday eave and rake termination.

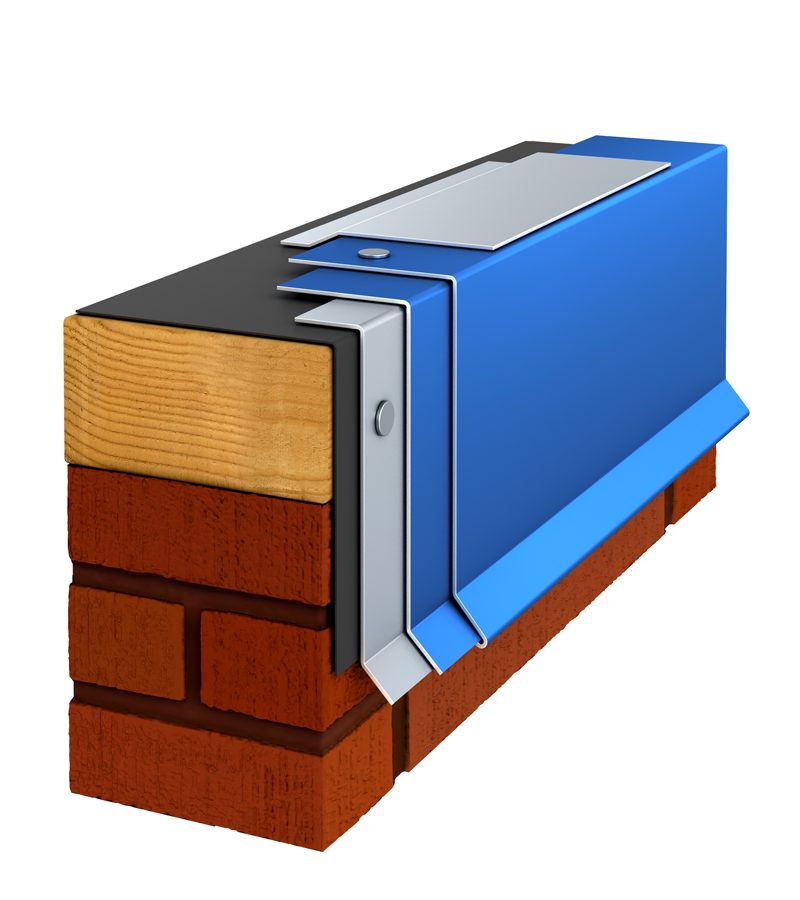

Drip Edge

Formed drip edge for shingle, standing seam, and low-slope terminations, with a hemmed drip leg and a roof flange for underlayment lap.

Face 1½"–6" 24 ga Galvalume, .032"/.040" aluminum, copper on request ES-1 tested profiles available

Coil & Flat Stock

Every gauge and alloy carried for the panel line, available as slit coil or sheared flat stock, painted to match.

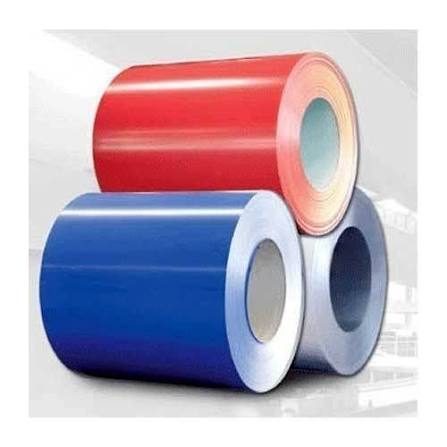

Coil

Continuous painted coil, slit to 20", 22", 24", or a custom width — brake it on site or in the shop.

Widths 20"–24" + custom to 48" Lengths 25/50/100/250/1000 ft 26/24/22 ga steel, .032"/.040" aluminum

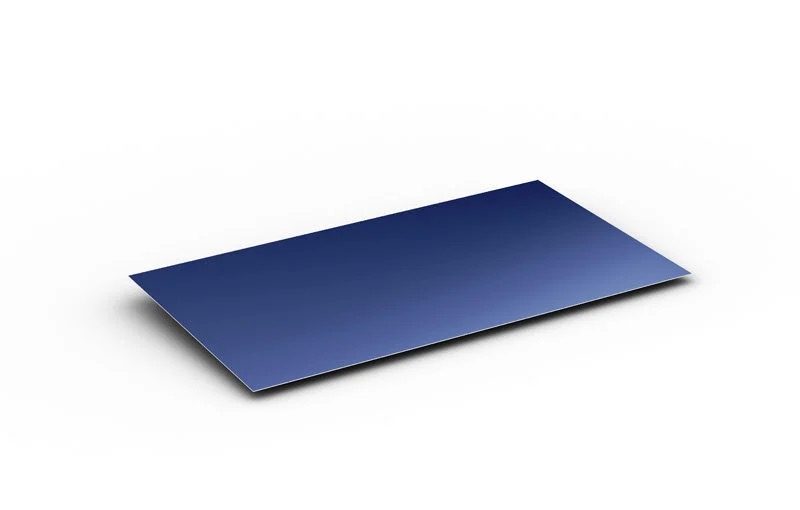

Flat Sheet

Full 48" × 120" sheared sheets — 40 sq ft of brake stock per sheet, sold by the sheet and priced by the square foot.

48" × 120" full sheet 40 sq ft per sheet 26/24/22 ga steel, .032"/.040" aluminum

Coil and flat stock is painted to match — pick any finish from the 28-color Kynar 500 chart, or leave it bare mill for concealed work.
